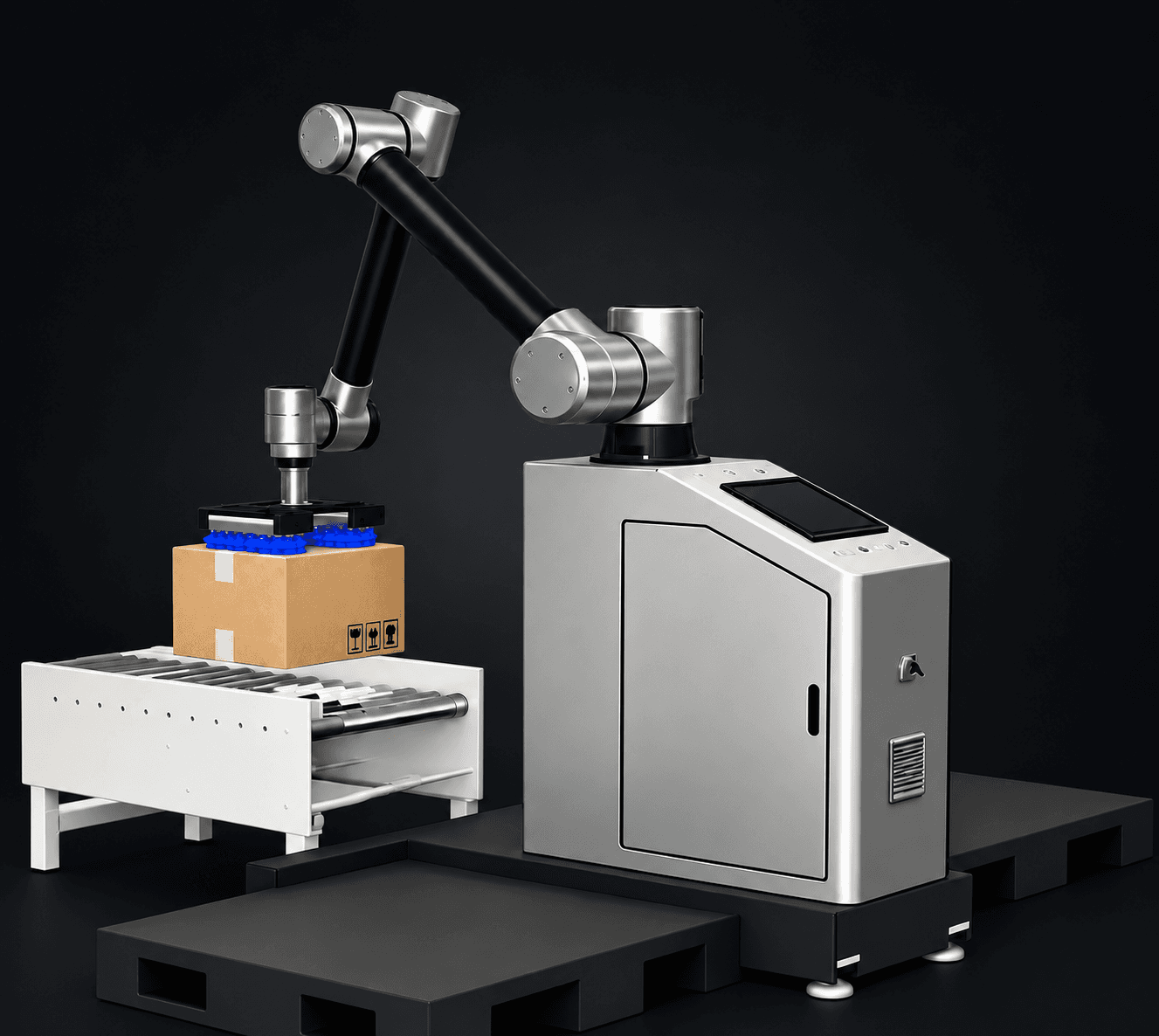

CR Series
Collaborative Palletizing Workstations
Compare CR30, CR30L, CR50 and CR50L: 30 kg or 50 kg payload, 1,900 mm reach, and fixed-base or 500 mm lifting configurations.
Category
Collaborative palletizing
Payload
30–50 kg
Reach
1,900 mm
Repeatability
±0.1 mm
Product highlights
Engineered for factory-grade automation.
Compare the model specifications below, then review tooling, payload and layout requirements with our engineering team.
All four models have 1,900 mm reach and ±0.1 mm repeatability.
CR30/CR50: 5 axes, without lifting; palletizing height up to 1,800 mm including the pallet.
CR30L/CR50L: 6 axes, standard 500 mm lifting stroke; palletizing height up to 2,300 mm including the pallet.
Model specifications
CR Series catalog models
Representative technical data extracted from the product catalog and rewritten for international buyers.
| Model | Payload | Axes | Reach | Palletizing height incl. pallet | Lifting stroke | Machine weight | Power supply capacity |
|---|---|---|---|---|---|---|---|
| CR30-1900 | 30 kg | 5 | 1,900 mm | ≤1,800 mm | Without lift | 430 kg | 8 kVA |
| CR30L-1900 | 30 kg | 6 | 1,900 mm | ≤2,300 mm | 500 mm standard; customizable | 480 kg | 8 kVA |
| CR50-1900 | 50 kg | 5 | 1,900 mm | ≤1,800 mm | Without lift | 450 kg | 10 kVA |
| CR50L-1900 | 50 kg | 6 | 1,900 mm | ≤2,300 mm | 500 mm standard; customizable | 500 kg | 10 kVA |
Applications
Where this series fits.
Send product dimensions, payload, gripper needs, cycle time, safety layout, and upstream/downstream equipment so engineering can confirm model fit.
