Collaborative Case Packing Workstation
BR-50
A 50 kg case packing workstation combining product infeed, vacuum handling and automatic carton packing, with a catalog packing rate of up to 8 pcs/min.
Payload
50 kg
Maximum travel
1,900 mm
Packing rate
≤8 pcs/min
Total power
3 kW
Technical specifications
BR-50 specifications
Use these specifications for preliminary selection. Confirm the final configuration against product data, tooling load, center of gravity and line layout.
| Model | BR-50 |
|---|---|
| Payload | 50 kg |
| Maximum robot travel | 1,900 mm |
| Packing rate | ≤8 pcs/min |
| Maximum carton length | ≤600 mm |
| Maximum carton width | ≤500 mm |
| Maximum carton height | ≤450 mm |
| Total power | 3 kW |
| Air pressure supply, catalog entries | 5 kgf/cm²; 0.6 MPa |
| Machine net weight | 150 kg |

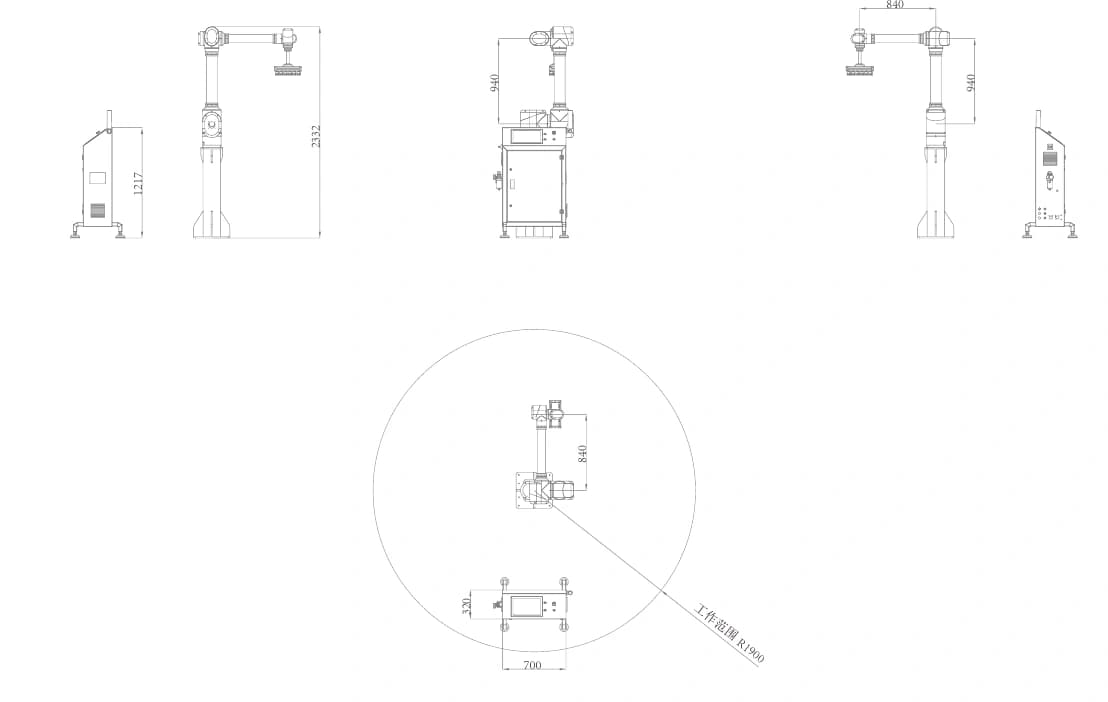

| Machine dimensions (L × W × H) | Main unit: 2,200 × 500 × 1,100 mm; electrical cabinet: 700 × 320 × 1,200 mm |
| Power supply | Single-phase 220 V, 50/60 Hz |
The catalog lists both 5 kgf/cm² and 0.6 MPa for air supply; these are not equivalent pressures. Confirm the required pressure and voltage tolerance for the selected configuration before installation. Packing rate depends on the product and packing pattern.
View original catalog and product illustrations →FAQ
Is BR-50 suitable for my product?
Selection depends on product weight, dimensions, cycle time, pallet pattern, gripper type, reach, and site layout. Send product photos, dimensions, and target throughput for a model recommendation.
Can SCR Robot provide the complete automation cell?
Yes. The robot can be supplied as part of a complete automation solution including gripper, conveyor, pallet handling, guarding, PLC/HMI, and on-site layout planning.
Are the technical parameters final for every project?
The listed values come from the catalog model data. Final configuration should be confirmed against the exact tooling, payload center, working envelope, and production environment.
What information is needed for a quotation?
Please provide product photos, weight, size, packaging type, hourly output, pallet size if applicable, factory layout, voltage requirements, and destination country.
